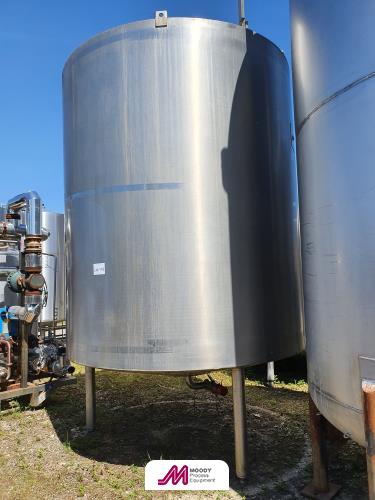

5,000 Litre Stainless Steel Jacketed Tank

Alfa Laval stainless Sseel fermenting vessels with CIP spray ball

Top & bottom manway

Jacket working pressure 6.2 Bar

Vessel Working Pressure Atmospheric

500 Litre Alfa Laval DD500 Deaeration Tank

Vacuum chamber type DD Vacuum Deaeration to avoid loss of vitamin content and deterioration in quality of cold or preheated liquids, particularly viscous food products such as juice concentrates, nectars, purees, etc. Condenser capacity The top-mounted condenser can condense 300 kg/h of vapour (3 m² size) or 550 kg/h (6 m² size) if the vapour temperature is higher than 60 °C and the cooling water temperature is 20 °C.

Refrigerated Milk Tank G4 650 Ltr

Description: Inner tank and outer casing made of AISI 304 stainless steel Total primary surface evaporator with maximum yield Very thick insulation by means of non-polluting polyurethane foam Inner trap for emptying DN50 threaded outlet connector with plug AISI 304 stainless steel arm Stainless steel measuring stick for the measurement of the milk level Cooling System: Non-icing cooling even with low filling level Direct expansion R404A refrigerating fluid for all models Stainless steel cover Compact and easy installation Complies with ISO 5708 class BII Electric System: Computerised milk-controller system for the management of all operations: - Milk temperature check - Digital temperature display - Stirring program - Programmed start-up of the cooling system Temperature relay protection for the three-phase compressors as well as compressors inner protection Electric feeding cables with standardised plug 230V 50Hz single-phase feeding 400V three-phase feeding 50Hz + neutral Capacities of the tanks are 430 ltr, 550 ltr, 650 ltr, 800 ltr, 1000 ltr, 1200 ltr, 1390 ltr, 1600 ltr and 1880 ltr -------- For further details please contact Mark on 07970 945637

6,000 Litre Stainless Steel Insulated Conical Based Tank

Stanfdijng on 4 legs with top manway.
