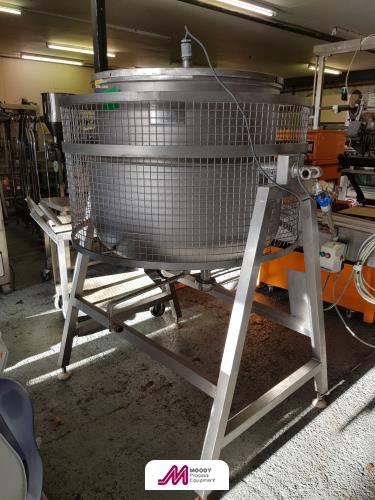

2,000 Litre 2011 Cream Jacketed Cream Aging Tank

Standing on 4 legs with gate agitator and CIP spray ball & top manway

2 x tanks available

30,000 Litre Stainless Steel Jacketed & Agitated Tank

30,000 Litre Stainless Steel Jacketed & Agitated Tank

With Gate Agitator & bottom manway

Working pressure 4 bar

Refrigerated Milk Tank G4 1600 Ltr

Description: Inner tank and outer casing made of AISI 304 stainless steel Total primary surface evaporator with maximum yield Very thick insulation by means of non-polluting polyurethane foam Inner trap for emptying DN50 threaded outlet connector with plug AISI 304 stainless steel arm Stainless steel measuring stick for the measurement of the milk level Cooling System: Non-icing cooling even with low filling level Direct expansion R404A refrigerating fluid for all models Stainless steel cover Compact and easy installation Complies with ISO 5708 class BII Electric System: Computerised milk-controller system for the management of all operations: - Milk temperature check - Digital temperature display - Stirring program - Programmed start-up of the cooling system Temperature relay protection for the three-phase compressors as well as compressors inner protection Electric feeding cables with standardised plug 230V 50Hz single-phase feeding 400V three-phase feeding 50Hz + neutral Capacities of the tanks are 430 ltr, 550 ltr, 650 ltr, 800 ltr, 1000 ltr, 1200 ltr, 1390 ltr, 1600 ltr and 1880 ltr -------- For further details please contact Mark on 07970 945637

Refrigerated Milk Tank G10 2600 Ltr

3 TANKS IN STOCK TODAY, READY FOR IMMEDIATE DESPATCH Description: Inner tank and outer casing made of AISI 304 stainless steel Total primary surface evaporator with maximum yield Inspections hatchway with AISI 304 airtight cover Very thick insulation by means of non-polluting polyurethane foam DN50 outlet butterfly valve Stainless steel dip-stick with conversion-table in litres for the measurement of milk-level Cooling System: Non-icing cooling even with low filling level Direct expansion R404A refrigerating fluid for all models The models of this range are compact and allow an easy installation. It complies with ISO 5708 class BII. Washing: Automatic washing milk-controller with the following characteristics - Low water and detergent consumption - Efficient washing system by means of highly effective rotating spray ball - Spray ball can be removed from the outside of the tank - Standard detergent container or dosage pumps or 2 glasses - Disinfection phases available on all the models Electric System: Computerised milk-controller system for the management of all the operations: - Milk temperature check - Digital temperature display - Stirring program - Programmed start-up of the cooling system - Automatic washing program - Outlets for remote alarm signals and for computer - Ample flexibility of operations Temperature relay protection for the compressors as well as compressors inner protection Temperature relays to protect washing pump and three-phase agitators Magnetothermic switch 400V three-phase feeding 50Hz + neutral 24V feeding for control apparatus and solenoid control Capacities of the tanks are 1000 ltr, 1200 ltr, 1380 ltr, 1600 ltr, 1880 ltr, 2300 ltr and 2600 ltr -------- For further details please contact Mark on 07970 945637
