500 Litre Single Skin Transi Tank

Technical features: - Palletised tank for storing and internal handling. - Shaped base with fork truck slot for a pallet truck - Bottom with a deep drawn shaped discharge to grant full product discharge - 304 Stainless steel cold rolled 2b finish - Cold forged bottom covers with optimised shape, minimum thickness 1.5mm - Robotized TIG welding process - Pickled and passivated seams - Bath galvanised mild steel palletised base - Stainless steel ring welded to the tanks and screwed to the base - Max hydraulic test pressure: 2.0 bar (200Kpa) - Max working pressure: 0.5 bar (50 Kpa) ----- Equipment: - 400 mm. diameter manhole - Lid with clamp closure (standard) - Butterfly outlet, diameter DN 50 (2") - 1" diameter threaded connection for safety valve - Pressure relief valve (max press. 0.5 bar) --- Optional items (upon request): - 316 Stainless Steel - Insulation - Water Jacket - Sprayball - Prop type agitator - Level gauges - Additional Connections

1,000 ltr Single Skin Transi Tank

Technical features: - Palletised tank for storing and internal handling - Shaped base with fork truck slot for a pallet truck - Bottom with a deep drawn shaped discharge to grant full product discharge - 304 Stainless steel cold rolled 2b finish - Cold forged bottom covers with optimised shape, minimum thickness 1.5mm - Robotized TIG welding process - Pickled and passivated seams - Bath galvanised mild steel palletised base - Stainless steel ring welded to the tanks and screwed to the base - Max hydraulic test pressure: 2.0 bar (200Kpa) - Max working pressure: 0.5 bar (50 Kpa) --- Equipment: - 400 mm. diameter manhole - Lid with clamp closure (standard) - Butterfly outlet, diameter DN 50 (2") - 1" diameter threaded connection for safety valve - Pressure relief valve (max press. 0.5 bar) --- Optional items (upon request): - 316 Stainless Steel - Insulation - Water Jacket - Sprayball - Prop type agitator - Level gauges - Additional connections ------- For further details please contact Mark 01777 712110

New Transit Tanks

We can offer a range of new transit tanks, options include forklift movements points, stackable, agitators fitted, stainless steel or galvenised frames with the main material of construction 316 or 304 stainless steel depending on your requirements. Sizes range from 500 litres upto 1500 litres.

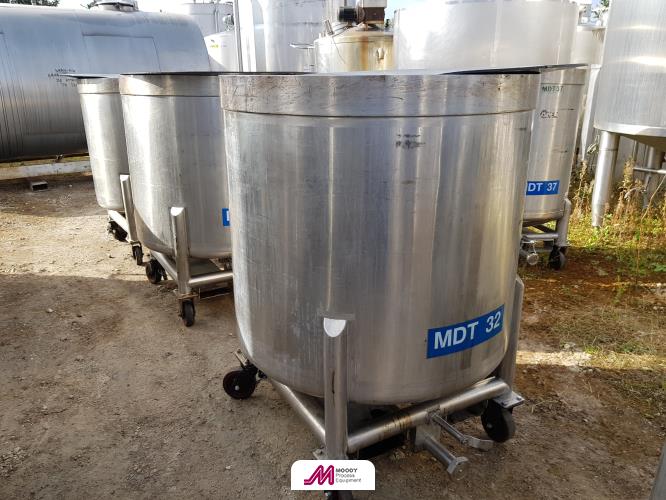

800 Litre Stainless Steel Transit Tanks

Working Pressure 1 Bar

Dimensions 1000mm Dia x 1700mm High

Capacity 800 Litres

With Butterfly Valve on Outlet
