700 Litre Stainless Steel Transit Tanks

Stainless Steel Transit Tanks with Open Top

On 4 Wheels & Fitted with Handles

2" Ball Valve on Outlet

800 Litre Stainless Steel Pressure Rated Transit Tanks

With Fork Lift Moving Points

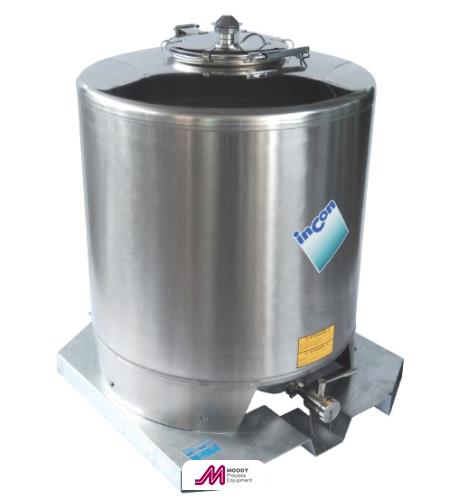

500 Litre Single Skin Transi Tank

Technical features: - Palletised tank for storing and internal handling. - Shaped base with fork truck slot for a pallet truck - Bottom with a deep drawn shaped discharge to grant full product discharge - 304 Stainless steel cold rolled 2b finish - Cold forged bottom covers with optimised shape, minimum thickness 1.5mm - Robotized TIG welding process - Pickled and passivated seams - Bath galvanised mild steel palletised base - Stainless steel ring welded to the tanks and screwed to the base - Max hydraulic test pressure: 2.0 bar (200Kpa) - Max working pressure: 0.5 bar (50 Kpa) ----- Equipment: - 400 mm. diameter manhole - Lid with clamp closure (standard) - Butterfly outlet, diameter DN 50 (2") - 1" diameter threaded connection for safety valve - Pressure relief valve (max press. 0.5 bar) --- Optional items (upon request): - 316 Stainless Steel - Insulation - Water Jacket - Sprayball - Prop type agitator - Level gauges - Additional Connections

500 Litre Stainless Steel Transit Tanks

Ucon 2003 Stainless Steel 500 Litre Mobile Transit Tanks with Handles
